Worm gear 13Z / 1.5 - 2.0, module 0.3 mm

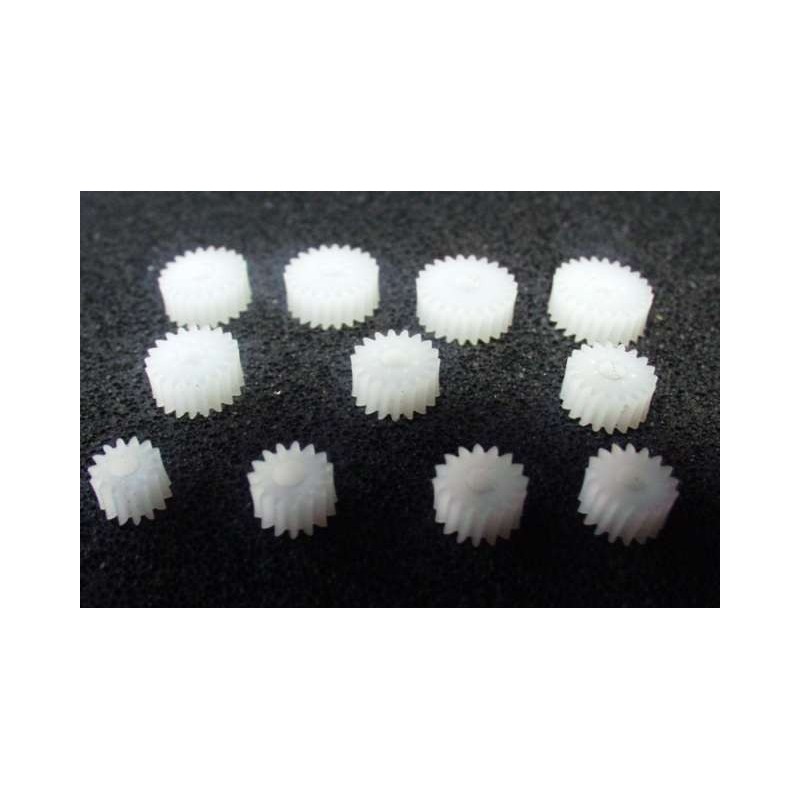

High-quality rolled Delrin gear wheel.

The parameters of the gear are:

Number of teeth: 13

Outer diameter (head): 4.5 mm

Pitch diameter: 3.9 mm

Gear width: 2.0 mm

Bore for pressing onto the axle: 1.5 mm

You can find basic general information about gears on Wikipedia.

All ALSRacing gears are manufactured with great care and excellent precision on Swiss hobbing machines. The typical runout of the gears is below +/- 0.01 mm and the diameter tolerance is typically +/- 0.005 mm.

If you cannot find a suitable gear design, custom manufacturing is also possible. The price and delivery time depend on the scope of the required production.
